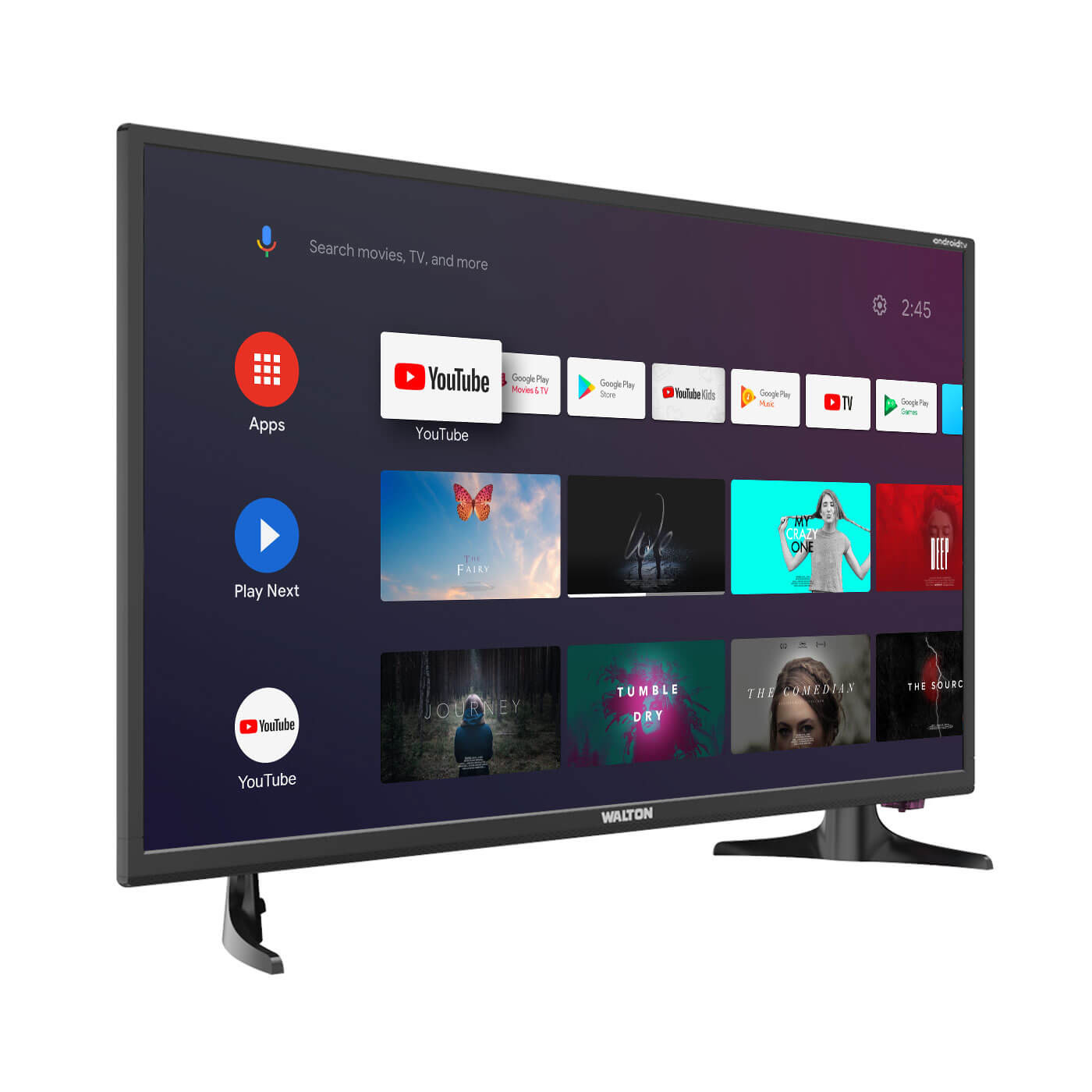

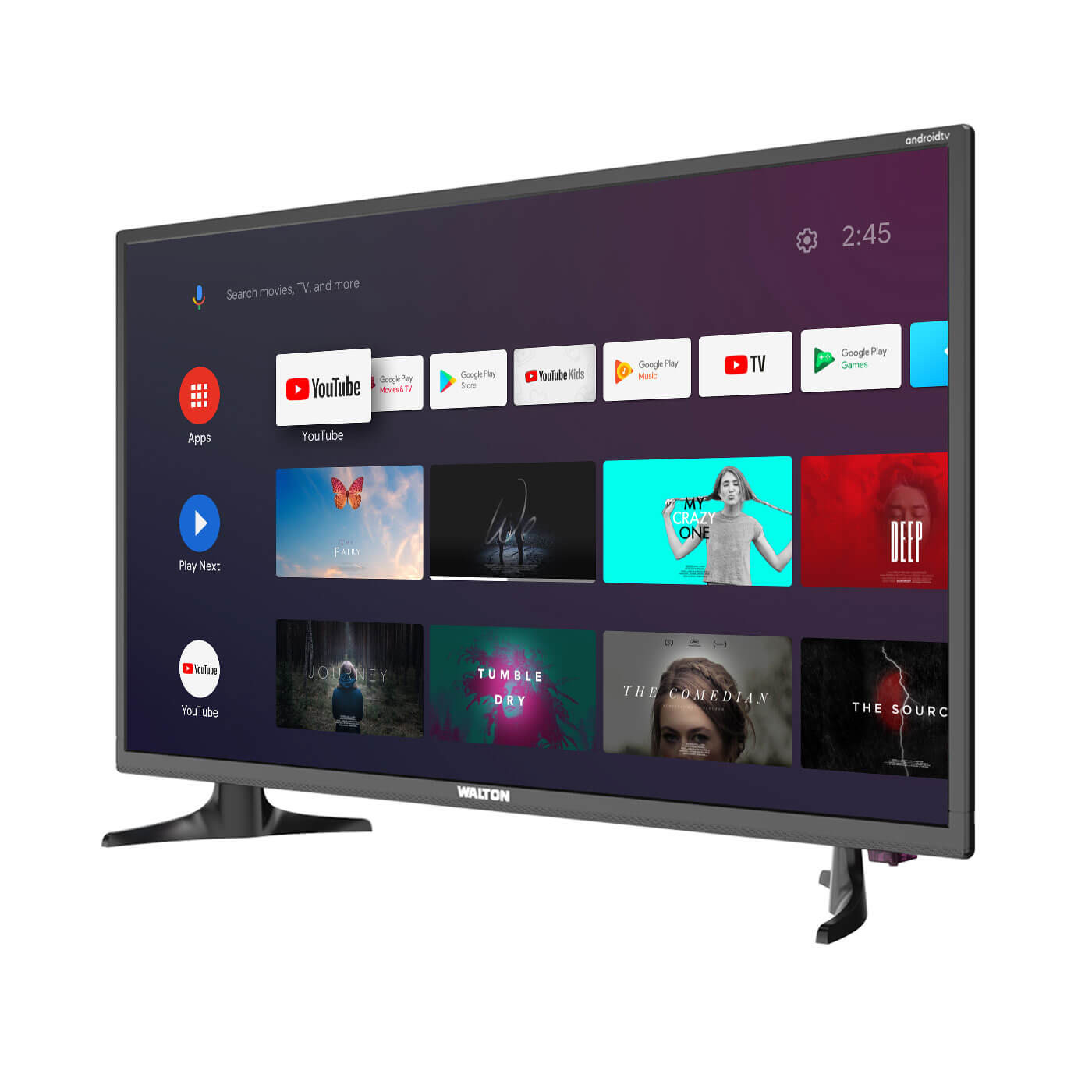

W32D120G (813 mm) Smart
- Android 9.0 (Android TV)
- Screen Size : 813 mm
- Aspect ratio : 16:9
- Resolution 1366 x 768 (HD)
- Viewing angle: H 1780 / V 1780
Basic Information :
Product Type LED TV
TV System PAL ; NTSC ; SECAM
Receiving Range 48.25MHz - 863.25 MHz
No of Channel (ATV) 200
Power Supply AC 110V-240V 50/60Hz
Power Consumption (TV On) 75W
Power Consumption (STB) < 0.5 W
Hardware Configuration :
CPU Quad Core ARM Cortex
GPU Multi Core Mali
CPU Frequency 1.1 GHz
GPU Frequency 470 MHz
DDR RAM Size 1GB
eMMC Flash 8 GB
Software Configuration :
OS Android 9.0 (Android TV)
Google Play Store
Yes
Screen Mirroring Chrome cast
Wi-Fi Hotspot Yes
YouTube
Yes
Netflix
Yes
Amazon Prime
Yes
HDMI (CEC,ARC)
Yes
Panel Specification :
Backlight Unit DLED
Aspect Ratio 16:9
Panel Size 813 mm
Display Resolution 1366 X 768
Brightness 210±10 cd/m2 (typical)
Contrast Ratio 4000:1 (typical)
Response Time 8 ms (typical)
Viewing Angle 178° / 178°
Color Black
Refresh Rate 60 Hz
Sound :
Audio Power Output 2 X 8 Watt
Sound Mode Standard, Music, Theater, News, Sports,User
Sound Control 2 Ch Speaker System
Surround Sound Yes
Terminals :
Bottom Terminals:
RJ45 (LAN Port)
1
COAX Out
1
HDMI In
3
AV In
1
AUDIO Out ( 3.5 mm)
1
Side Terminals:
RF In
1
USB 2.0
2
Mini YPbYr
1
Device Media Format :
Music MP3; WAV
Picture JPG/JPEG/BMP/PNG
Video AVI; MP4; TS/TRP; MPG; MOV; DAT; VOB; RM/RMVB
Text TXT
Subtitle SRT; .SUB; .SMI
Dimensions & Weight :
TV with Stand (L × W × H) 733mm × 191mm × 477mm
TV without Stand (L × W × H) 733mm × 78mm × 443mm
TV Shipping dimensions (L × W × H) 815mm × 135mm × 515mm
TV with Stand Weight 3.84 KG
TV without Stand Weight 3.78 KG
TV Shipping Weight 5.44 KG
Loading :
40 HQ Container
Approx. 1200 Pcs
40 GP Container
Approx. 950 Pcs
20 GP Container
Approx. 448 Pcs
Warranty Information:
- TV Replacement Guarantee : 6 months (Condition Applicable)
- LED Panel: 5 Years
- Spare Parts: 5 Years
- Free Service: 5 Years
Note: This warranty does not cover any damage due to accident, electricity fault, natural causes or negligence. And Authority keeps the power to change, expand, correction, stop or cancel the warranty period without any prior notice.
